Warewashing green&clean hood type dishwasher, 80r/h with Drain Pump & Detergent Dispenser, Energy Saving Device (COD 504297)
Where to buy
green&clean hood type - Single Skin manual

Warewashing
green&clean hood type dishwasher, 80r/h with Drain Pump & Detergent Dispenser, Energy Saving Device

COD 504297

Hood Type Dishwasher, with single skin manual hood, atmospheric boiler, built-in detergent dispenser, rinse aid dispenser and drain pump, ESD, 80r/h

Specifications

  • Supply voltage: 400 V/3N ph/50 Hz

    Convertible to: 230V 1N~; 230V 3~

    Default Installed Power: 9.9 kW

    Boiler Heating Elements Power: 9 kW

    Tank heating elements: 3 kW

    Wash pump size: 0.8 kW

  • Water supply temperature*: 10-20 °C

    Drain line size: 20.5mm

    Inlet water supply pressure: 0.5-7 bar

    Water consumption per cycle (lt): / 2

    Boiler Capacity (lt): 12

    Tank Capacity (lt): 24

  • N° of cycles: 3

    Duration cycle:* 45/84/150 sec.

    Duration cycle - NSF/ANSI 3 compliant: 57/84/150 sec.

    Racks per hour:* 80

    Racks per hour - NSF/ANSI 3 compliant: 63

    Dishes per hour:* 1440

    Dishes per hour - NSF/ANSI 3 compliant: 1134

    Wash temperature: 55 °C

    Wash temperature - NSF/ANSI 3 compliant: 75 °C

    Rinse temperature: 84 °C

    External dimensions, Width: 746 mm

    External dimensions, Depth: 755 mm

    External dimensions, Height: 2273 mm

    Net weight: 150 kg

    Shipping weight: 119 kg

    Shipping weight (ESD): 79 lbs (36 kg)

    Shipping volume: 1.26 m³

    Shipping volume (ESD): 0.33 m³

    Packaging size(WxDxH): 930x790x1720 mm

    Packaging size ESD (WxDxH): 740x930x480 mm

    * productivity guaranteed at any supply temperature allowed in the range above. To ensure full energy recovery, an extra 11 seconds is required.

  • Noise level: <68 dBA

  • Air Flow: 28 m³/h

    Air temperature: 26 - 29 °C

    Air humidity: 55%

    Latent heat: 350 W

    Sensible heat: 1490 W

Product Features

45/84/150 seconds cycles (High productivity mode); 57/84/150 seconds cycles (NSF/ANSI 3 mode).
Maximum capacity per hour of 80 racks or 1.440 dishes (High productivity mode) easy to switch to 63 racks or 1.134 dishes (NSF/ANSI 3 mode) by pressing a button.
Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.
NSF/ANSI 3 and DIN 10512 compliant.
Built-in atmospheric boiler sized to raise incoming water to a minimum of minimum 84 °C for sanitizing rinse. No external booster is required. Constant temperature of 84 °C throughout the rinsing cycle regardless of the network's water pressure.
Unique temperature interlock guarantees required temperatures in both the wash and final rinse in case of emergency cold water feeding.
Incorporated Soft Start feature to offer additional protection to more delicate items.
Slanted wash arms to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.
Cycle may be interrupted at any time by lifting the hood.
Automatic self-cleaning cycle and self-draining vertical wash pump and boiler to avoid bacteria proliferation.
State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.
Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
Boiler power setting from control panel to facilitate technician's operation when reducing total installed power, thus avoiding the need of machine opening.
Three phase electrical connection, convertible to single phase on-site.
IP25 protection against water jets, solid objects and small animals (larger than 6 mm).
Heavy duty Stainless steel construction. Internal cavity as well as exterior panels are in 304 series Stainless steel.
Pressed tank in front position to facilitate cleaning.
Single skin hood supported by 3 springs to ensure smooth movement and guarantee operator safety.
Specially designed Stainless steel wash/rinse arms and nozzles provide superior cleaning action.
Revolving interchangeable Stainless steel wash/rinse arms above and below the rack, screw out for simple clean up.
Pre-arranged for on-site HACCP implementation and Energy Management device.
Element protection from dry fire and low water.
Unit to include drain, detergent and rinse aid dispenser pumps

Included Accessories

Quantity
Code
Description
Quantity: 2
Code: 864242
Yellow cutlery container
Quantity: 1
Code: 867002

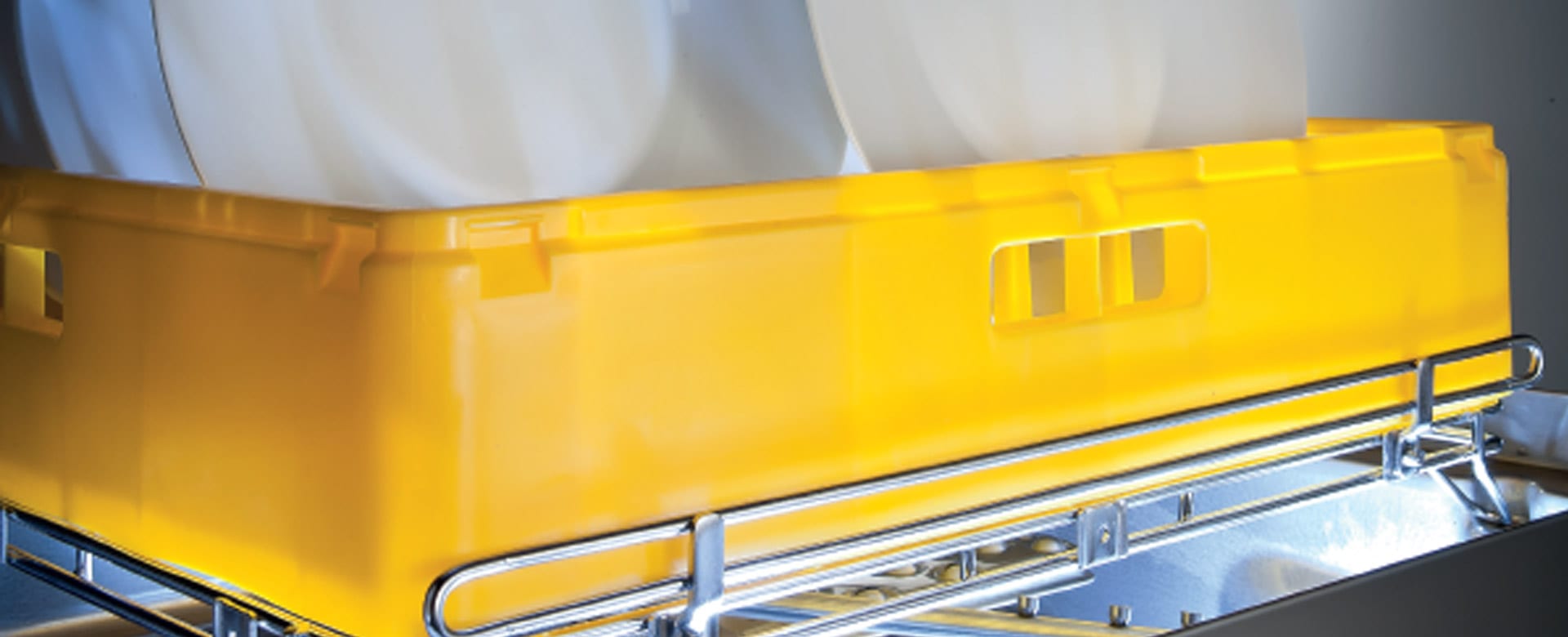

Basket for 18 dinner plates - yellow
