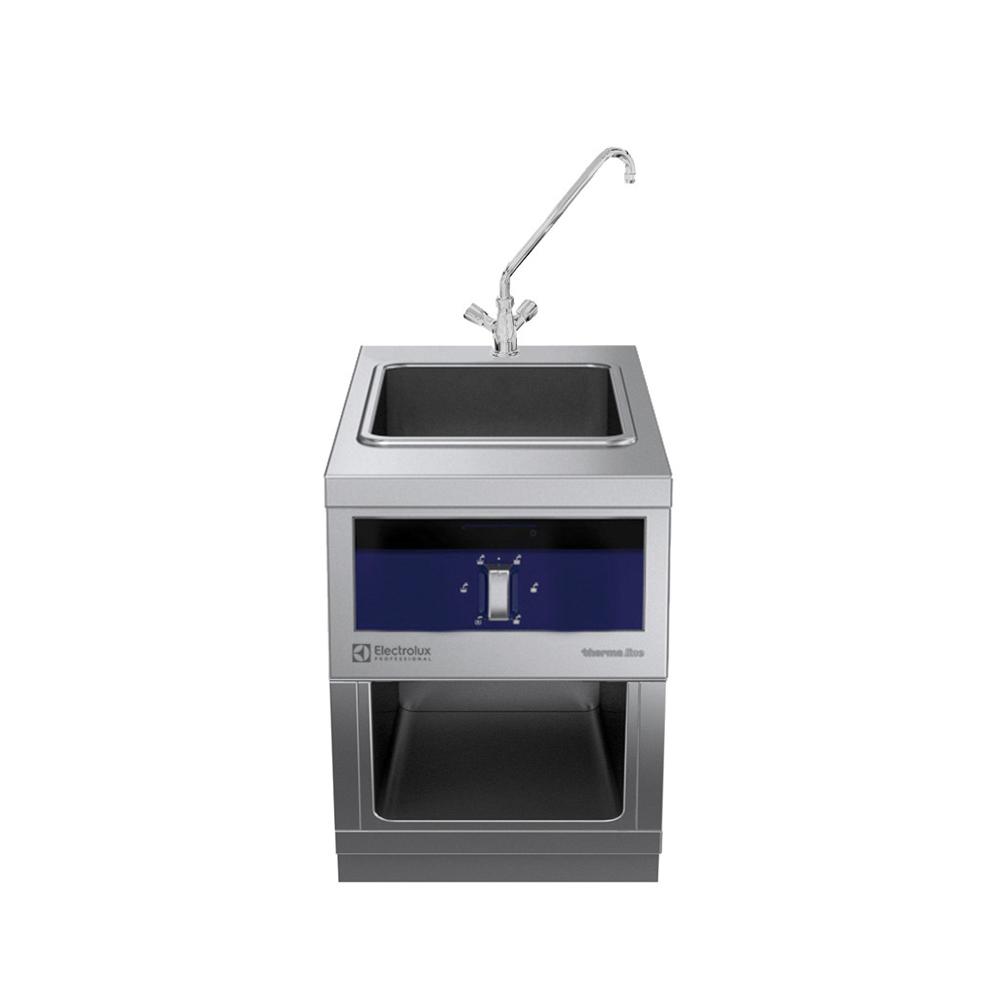

Modular Cooking Range Line thermaline 90 - Electric Bain Marie, Rear Tap, 1/1GN, 1 Side-Marine (COD 589820)
Where to buy
Modular Cooking Range Linethermaline 90 - Electric Bain Marie, Rear Tap, 1/1GN, 1 Side-Marine
Bain Maries

Modular Cooking Range Line
thermaline 90 - Electric Bain Marie, Rear Tap, 1/1GN, 1 Side-Marine

COD 589820

Electric Bain-marie Top with rear tap, one-side operated, 1/1 GN - Marine

Where to buy
Register your product

Specifications

  • Supply voltage: 440 V/3 ph/50/60 Hz

    Total Watts: 1.5 kW

  • Number of wells: 1

    Usable well dimensions (width): 307 mm

    Usable well dimensions (height): 170 mm

    Usable well dimensions (depth): 509 mm

    Well capacity: 5 lt MIN; 32 lt MAX

    Thermostat Range: 30 °C MIN; 90 °C MAX

    External dimensions, Width: 400 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 700 mm

    Net weight: 43 kg

    Configuration: One-Side Operated;Top

  • Current consumption: 4 Amps

  • Inlet water line size: 3/4"

    Incoming Cold/hot Water line size: 3/4"

    Drain line size: 1"

Product Features

Overheat protection: a temperature sensor switches off the supply in case of overheating.
Filling water level is plate-marked on the side of the well.
THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service.
Raised edge all around the well to protect from infiltration of dirt from worktop.
Easy to clean basin with rounded corners.
Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.
Large visible digital display manufactured in tempered glass to resist heat and chemicals, showing temperatures or power settings. The display also shows on/off status of the appliance and on/off status of the heating elements.
Water temperature controlled by electronic sensor and can be selected as either temperature or power levels.
Safety systems protect against overtemperature and can be manually reset.
IPX5 water resistance certification.
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth.
Water basin in 1.4435 (AISI 316L) stainless steel is seamlessly welded into the top of the appliance.
2 mm top in 1.4301 (AISI 304).
Internal frame for heavy duty sturdiness in stainless steel.
Unit constructed according to DIN 18860_2 with 20 mm drop nose top.
Flat surface construction with minimal hidden areas to easily clean all surfaces
