Digital Undercounter ecostore HP Premium Refrigerated Counter - 290lt, 2-Door (COD 710001)
Where to buy
ecostore HP Premium Ref. Counters - 2 compartments with top

Digital Undercounter
ecostore HP Premium Refrigerated Counter - 290lt, 2-Door

COD 710001

2-door Refrigerated Counter 290lt, -2+10°C, AISI 304

Specifications

  • Supply voltage: 220-240 V/1 ph/50 Hz

    Electrical power max.: 0.25 kW

    Defrost Power: 0.22 kW

    Plug type: CE-SCHUKO

  • Current consumption: 1.8 Amps

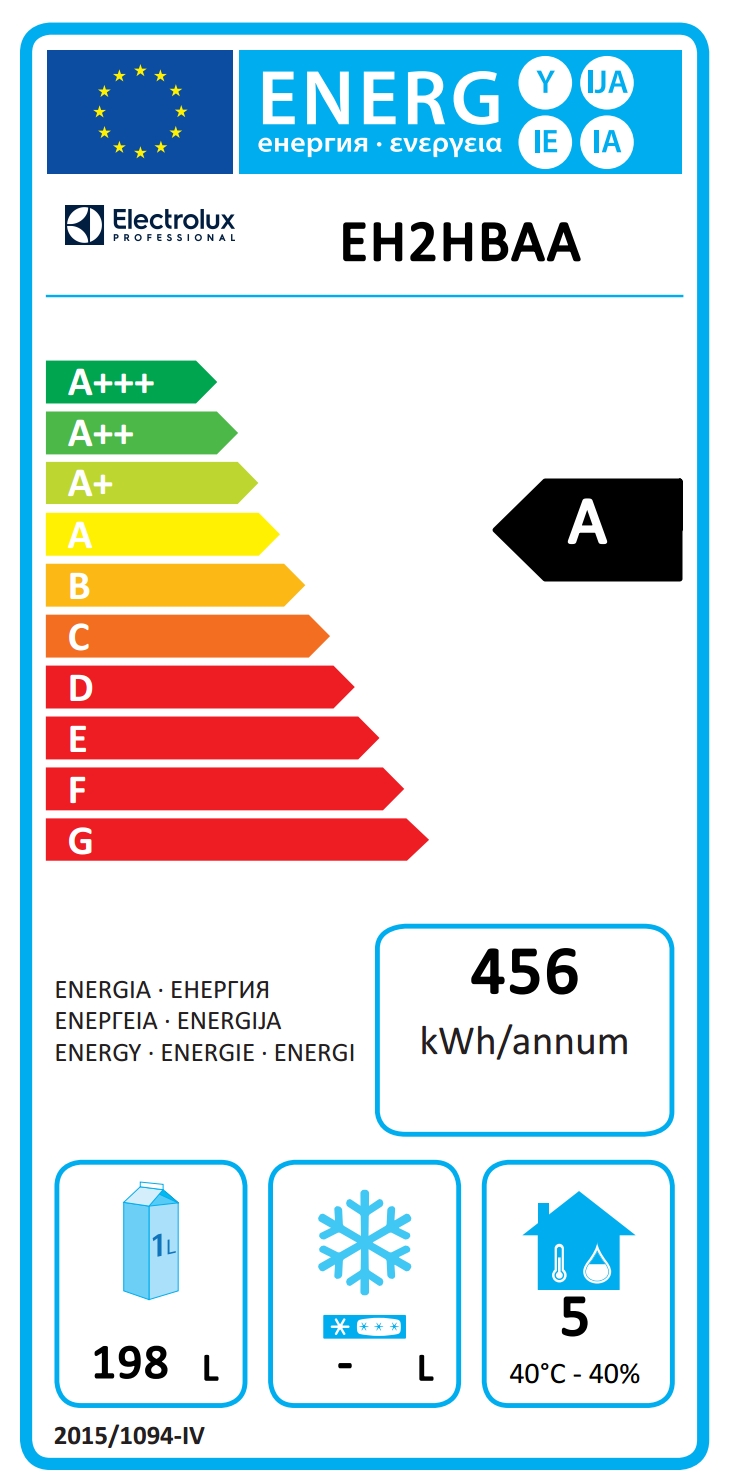

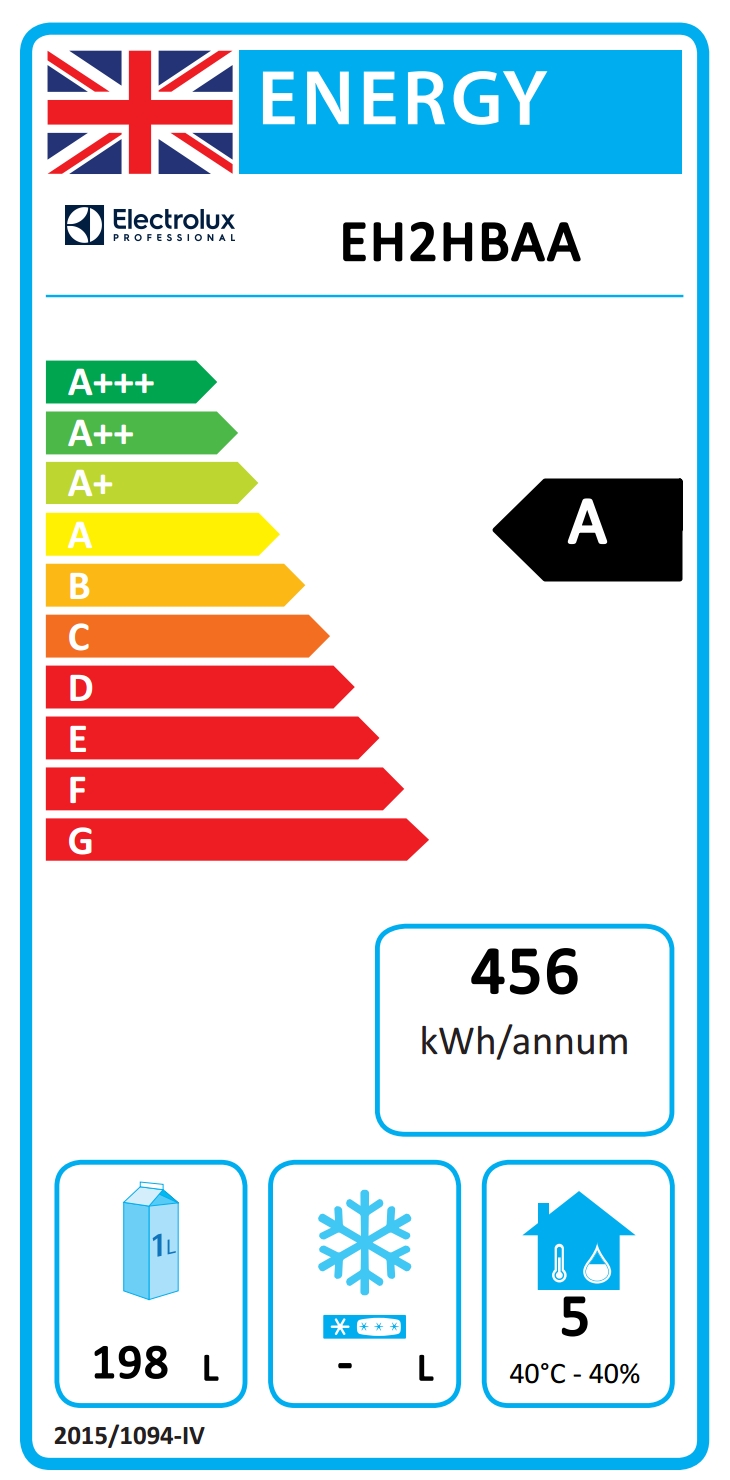

    Energy Class (EU Reg. 2015/1094): A

    Yearly and daily energy consumption (EU Reg. 2015/1094): 456kWh/year - 1kWh/24h

    Climate class (EU Reg. 2015/1094): Heavy Duty (5)

    Energy Efficiency Index-EEI (EU Reg. 2015/1094): 19,86

    Refrigerant type: R290

    GWP Index: 3

    Refrigeration power: 320 W

    Refrigerant weight: 70 g

  • Gross capacity: 290 lt

    Net Volume: 198 lt

    Door hinges: 1 Left+1 Right

    External dimensions, Width: 1345 mm

    External dimensions, Depth: 700 mm

    External dimensions, Height: 900 mm

    Internal Dimensions, Width: 798 mm

    Internal Dimensions, Depth: 560 mm

    Internal Dimensions, Height: 550 mm

    Net weight: 104 kg

    Shipping volume: 1.14 m³

    Depth with doors open: 1110 mm

    Height adjustment: -5/50 mm

  • Control type: Digital

    Compressor power: 1/4 hp

    Refrigeration power at evaporation temperature: -10 °C

    Min/Max internal humidity: 40/85

    Operating temperature min.: -2 °C

    Operating temperature max.: 10 °C

    Operating mode: Ventilated

  • ISO Standards: ISO 9001; ISO 14001; ISO 45001; ISO 50001

Product Features

Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
Certified safety CE requirements.
Preservation performances and temperature uniformity within the cell guaranteed at 5-HEAVY DUTY (40°C) working conditions according to EN16825:2016 test protocol.
Adjustable temperature range from -2 °C to +10 °C to suit meat, fish and dairy storage requirements.
Large digital white-digit display with humidity selection button (3 preset level), internal temperature display and setting, manual activation of defrost cycle and turbo frost cycle (to rapidly cool warm loads).
Electrolux Professional Fridge Control APP make the life easier for our customers: ​
- Monitor safety of preservation process thanks to HACCP data & alarms for precise control​
​- Save time and easy data management having the possibility to send the HACCP information in excel format directly to e-mail address​
- Quick operations:​ set the cabinet temperature/humidity/turbocooling​ and set date/hour
Equipped with Optiflow forced air circulation system for rapid cooling and temperature distribution within the cell.
0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.
Combination of doors and drawers to suit any configuration needed, with the possibility to change the configuration on site. Right cooling unit available on request.
Fully removable cooling unit to facilitate maintenance.
Frontal and easy access to all components in the cooling unit.
Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.
Tropicalized unit.
Anti-tilt runners accept GN 1/1 containers.
Self closing stainless steel doors (< 90°).
Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Hot gas automatic evaporation of defrost water.
Mounted on stainless steel feet to give 150 mm (-5/+50 mm) clearance for ease of cleaning the floor.
External bottom panel in stainless steel.
External back panel in galvanized steel.
2 compartments with 2 doors.
Interior base with rounded corners, pressed from a single sheet.
Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.
Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.
Worktop in AISI 304 Stainless steel with a 50 mm profile.
If needed, working top can be removed for easier handling during installation (in case of narrow doors).
Anti-drip profile on stainless steel worktop edge.
Internal and external doors, front and side panels and removable worktop in AISI 304 Stainless steel.
Built-in refrigeration unit.
Developed and produced in ISO 9001 and ISO 14001 certified factory.
Fault code display.

Included Accessories

Quantity
Code
Description
Quantity: 2
Code: 881109
Kit 1/1 grey rilsan grid and 2 side runners for refrigerated counters
